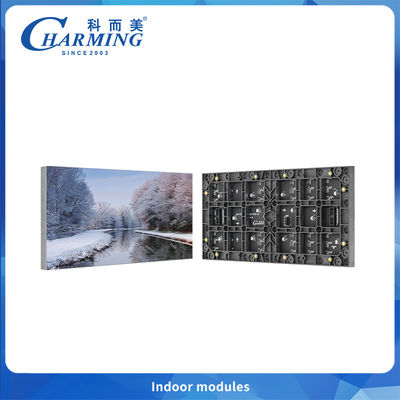

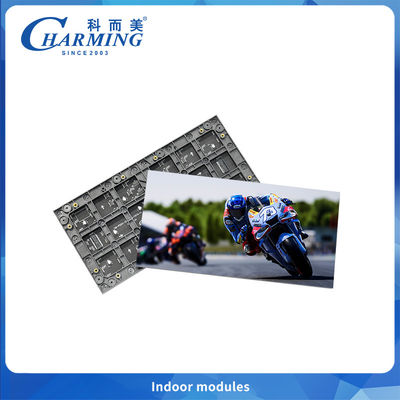

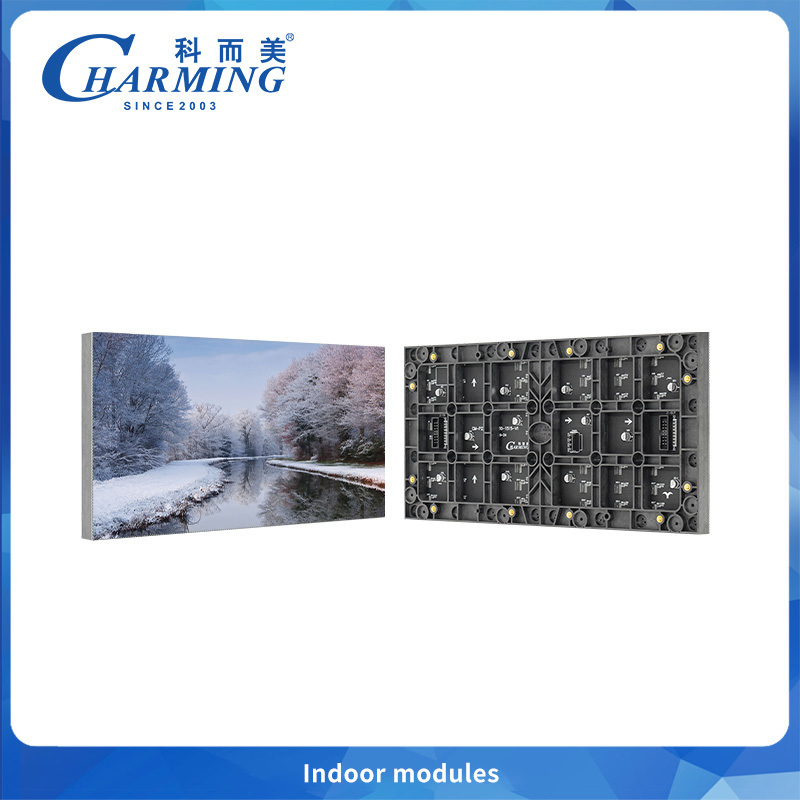

Hot Sale 320*160mm Small Pixel Pitch Led Display P2 P2.22 Indoor Led Video Wall Screen for Advertising
تفاصيل المنتج:
| مكان المنشأ: | شينا'\ |
| اسم العلامة التجارية: | Charmingled,'\ |
| إصدار الشهادات: | CE, ROHS, LVD, EMC, CB, BIS, UL,'\ |
| رقم الموديل: | P1.86 P2 P2.22 P2.5،'\ |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 10 قطع،'\ |
|---|---|
| الأسعار: | Negotiable，'\ |
| تفاصيل التغليف: | علبة كرتون، علبة خشبية، حافظة طيران،'\ |
| وقت التسليم: | 30 يوم عمل بعد الدفع،'\ |
| شروط الدفع: | L/C ، T/T ، Western Union ، PayPal ، Cash |
| القدرة على العرض: | 100000 قطعة في الأسبوع،'\ |
|
معلومات تفصيلية |
|||
| معدل التحديث (هرتز): | 7680 هرتز/3840 هرتز/1920 هرتز،'\ | السطوع (cd / ㎡): | 14-16 بت\ |
|---|---|---|---|
| درجة حرارة العمل: | -20 ~ 50 درجة مئوية،'\ | رطوبة العمل: | 10% ~ 90% رطوبة نسبية،'\ |
| جهد العمل: | تيار مستمر 5 فولت،'\ | ||
| إبراز: | P2 indoor LED video wall,small pixel pitch LED display,320x160mm LED advertising screen,small pixel pitch LED display,320x160mm LED advertising screen |
||
منتوج وصف
Charming Co., Ltd. stands at the forefront of the global entertainment lighting and LED industry, driven by a vision for technological progress and exceptional customer service worldwide.
Our historic introduction of the world's first LED display for entertainment in 2003 defined a new era, establishing a legacy of innovation that continues to shape the industry's future. We are honored to be recognized as a premier brand in China for entertainment LED solutions.
Our commitment to excellence is reflected in our portfolio of nearly 100 patents and our compliance with major international certifications such as ISO9001, CE, CCC, CB, ROHS, and SASO.
Anchored by our "Charming Achieve Beauty" ethos, we have built a state-of-the-art, 10,000+ square meter manufacturing complex featuring fully automated production lines. Over the past 22 years, our global footprint has expanded to serve satisfied customers in more than 150 countries and regions.
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number, | SP2, | SP2.22, | SP2.5, | SP3, | SP4, | SP4, |
| Dimension (MM), | 320x160, | 320x160, | 320x160, | 192x192, | 256x128, | 256x256, |
| Pixel Pitch (MM), | 2, | 2.22, | 2.5, | 3, | 4, | 4, |
| LED Standard, | SMD1515, | SMD2020, | SMD2020, | SMD2020, | SMD2020, | SMD2020, |
| Scan Mode, | 1/40 Scan, | 1/36 Scan, | 1/32 Scan, | 1/32 Scan, | 1/32 Scan, | 1/32 Scan, |
| Pixel Density (Dot/m²), | 250000, | 202500, | 160000, | 111111, | 62500, | 62500, |
| Module Max.Power (W), | 22, | 20, | 24, | 10, | 5, | 10, |
| Best Viewing Distance (M), | ≥2.5, | ≥2.5, | ≥2.5, | ≥3, | ≥4, | ≥4, |
| Refresh Rate (Hz), | 7680, | 3840/1920, | 3840/1920, | 3840/1920, | 3840/1920, | 3840/1920, |
| Brightness (CD/m²), | 800, | ≥700, | ≥800, | ≥600, | ≥400, | ≥400, |
| Viewing Angle, | 120°, | 120°, | 120°, | 120°, | 120°, | 120°, |
| Protection Level, | IP42, | IP42, | IP42, | IP42, | IP42, | IP42, |
| Grey Level, | 14-16 bit, | 14-16 bit, | 14-16 bit, | 14-16 bit, | 14-16 bit, | 14-16 bit, |
| Working Temperature, | -20 ~ 50℃, | -20 ~ 50℃, | -20 ~ 50℃, | -20 ~ 50℃, | -20 ~ 50℃, | -20 ~ 50℃, |
| Working Humidity, | 10% ~ 90%RH, | 10% ~ 90%RH, | 10% ~ 90%RH, | 10% ~ 90%RH, | 10% ~ 90%RH, | 10% ~ 90%RH, |
| Life Span, | ≥50000 Hours, | ≥50000 Hours, | ≥50000 Hours, | ≥50000 Hours, | ≥50000 Hours, | ≥50000 Hours, |
| Working Voltage, | DC 5V, | DC 5V, | DC 5V, | DC 5V, | DC 5V, | DC 5V, |
- ✓ 2-Year Full Warranty - Free replacement or repair for any defective displays, modules, or parts.
- ✓ Lifetime Maintenance - Only material costs apply after the warranty period.
- ✓ Free Technical Training - Includes hands-on operation & maintenance training at our factory.
- ✓ Comprehensive Documentation - Operation manuals, software, test reports, CAD drawings, and expert guidance provided.
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
1. Can I request a sample before placing a full order?
Yes, we provide samples of both LED modules and full screens for quality and performance evaluation.
2. What is the typical delivery timeline?
LED modules: 1–5 days
Full LED screens (<100㎡): within 15 working days
3. What warranty is included?
All products come with a one-year warranty covering parts and performance.
4. What after-sales support do you offer?
We provide 24/7 online assistance, a dedicated service hotline, and a professional support team to resolve issues promptly.
5. Can displays be made in any custom size?
Sizes are customized based on standard module and cabinet dimensions to ensure visual consistency and performance.
6. Do you offer installation support?
Yes, we supply installation drawings and provide real-time remote guidance via TeamViewer if needed.
7. What details are needed to get a quote?
Please share the display size and intended application so we can propose a suitable solution.
8. What are the shipping options?
We offer both air and sea freight. Sea shipping is more cost-effective for larger orders.
9. Which payment methods are supported?
We accept T/T, Western Union, and Alibaba Trade Assurance, which we recommend for secure order handling.
