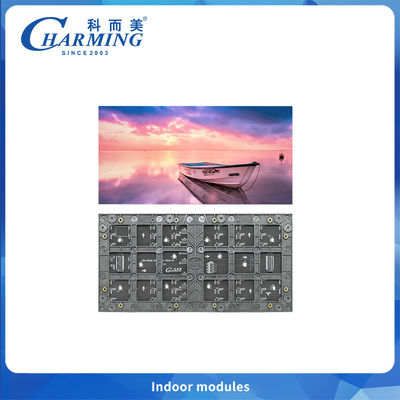

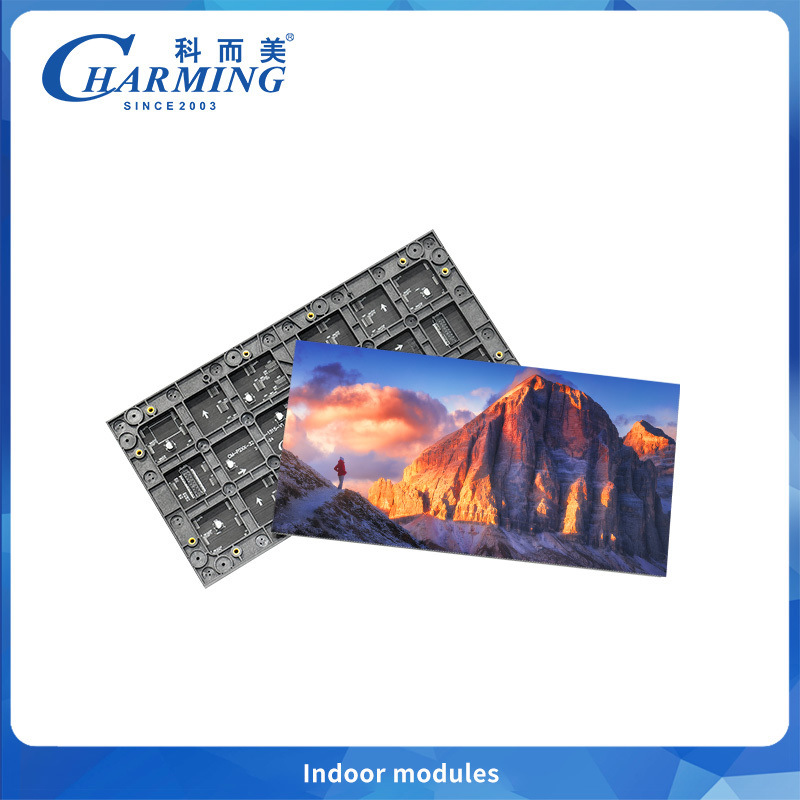

Factory Custom 320x320 LED Display Module for Shopping Field
تفاصيل المنتج:
| مكان المنشأ: | تشينا |
| اسم العلامة التجارية: | Charmingled |
| إصدار الشهادات: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| رقم الموديل: | P1.86 P2 P2.22 P2.5 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 150 جهاز كمبيوتر |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | قضية الكرتون ، حالة خشبية ، حالة طيران |
| وقت التسليم: | 30 يوم عمل بعد الدفع |
| شروط الدفع: | L/C ، T/T ، Western Union ، PayPal ، Cash |
| القدرة على العرض: | 1000 جهاز كمبيوتر في الأسبوع |
|
معلومات تفصيلية |
|||
| عمر: | ≥50000 ساعة | مستوى رمادي: | 14-16 بت |
|---|---|---|---|
| معدل التحديث (هرتز): | 7680 هرتز/3840 هرتز/1920 هرتز | درجة حرارة العمل: | -20 ~ 50 درجة مئوية |
| رطوبة العمل: | 10 ٪ ~ 90 ٪ RH | جهد العمل: | DC 5V |
| إبراز: | 320x320 LED display module,custom LED video wall,shopping field LED display,custom LED video wall,shopping field LED display |
||
منتوج وصف
Factory Custom 320x320 LED Display Module for Shopping Field
High Definition Small Pitch LED for Large Screen Advertising & Conference Applications
Charming Co., Ltd.: A leader in entertainment LED and lighting innovation since 2003, when we launched the world's first entertainment LED display. We are now a top customer-satisfaction brand in China, holding nearly 100 patents and all essential certifications (ISO9001, CE, CCC, etc.).
From our 10,000+ sqm automated production facility, we uphold the "Charming Achieve Beauty" philosophy to serve clients in over 150 countries with quality products and services for 22 years and counting.
Technical Specifications
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22 | SP2.5 | SP3 | SP4 | SP4 |
| Dimension (MM) | 320x160 | 320x160 | 320x160 | 192x192 | 256x128 | 256x256 |
| Pixel Pitch (MM) | 2 | 2.22 | 2.5 | 3 | 4 | 4 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/40 Scan | 1/36 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan |
| Pixel Density (Dot/m²) | 250000 | 202500 | 160000 | 111111 | 62500 | 62500 |
| Module Max.Power (W) | 22 | 20 | 24 | 10 | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5 | ≥2.5 | ≥2.5 | ≥3 | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800 | ≥700 | ≥800 | ≥600 | ≥400 | ≥400 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Protection Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
| Grey Level | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Working Temperature | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ |
| Working Humidity | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
Warranty & Support
Comprehensive 2-Year Protection
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
After-Sales Service Package
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Frequently Asked Questions
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality for both LED modules and complete screens.
What is the delivery time?
LED modules: 1-5 days. Complete screens (under 100m²): within 15 working days.
What warranty do you offer?
We provide a 2-year comprehensive warranty for all products.
How is the after-sales service?
Our professional team provides 24-hour online support with dedicated hotlines for complaints and feedback.
Can we customize display sizes?
Display sizes are determined by module and cabinet dimensions for optimal performance.
How to install the LED display?
We provide detailed CAD drawings or remote TeamViewer support for installation.
What shipping methods are available?
We recommend sea freight for cost efficiency, though air shipping is also available.
What payment methods do you accept?
We accept TT, Western Union, and recommend Ali Trade Assurance for secure transactions.
