Indoor Full Color Led Screen Display Led Advertising Panel High Resolution Led Display Digital Panel
تفاصيل المنتج:
| مكان المنشأ: | تشينا |
| اسم العلامة التجارية: | Charmingled |
| إصدار الشهادات: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| رقم الموديل: | P1.86 P2 P2.22 P2.5 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 100 قطعة |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | قضية الكرتون ، حالة خشبية ، حالة طيران |
| وقت التسليم: | 30 يوم عمل بعد الدفع |
| شروط الدفع: | L/C ، T/T ، Western Union ، PayPal ، Cash |
| القدرة على العرض: | 100000 قطعة في الأسبوع |
|
معلومات تفصيلية |
|||
| عمر: | ≥50000 ساعة | مستوى رمادي: | 14-16 بت |
|---|---|---|---|
| معدل التحديث (هرتز): | 7680 هرتز/3840 هرتز/1920 هرتز | درجة حرارة العمل: | -20 ~ 50 درجة مئوية |
| رطوبة العمل: | 10 ٪ ~ 90 ٪ RH | جهد العمل: | DC 5V |
| إبراز: | indoor full color LED display panel,high resolution LED advertising screen,digital LED video wall display,high resolution LED advertising screen,digital LED video wall display |
||
منتوج وصف

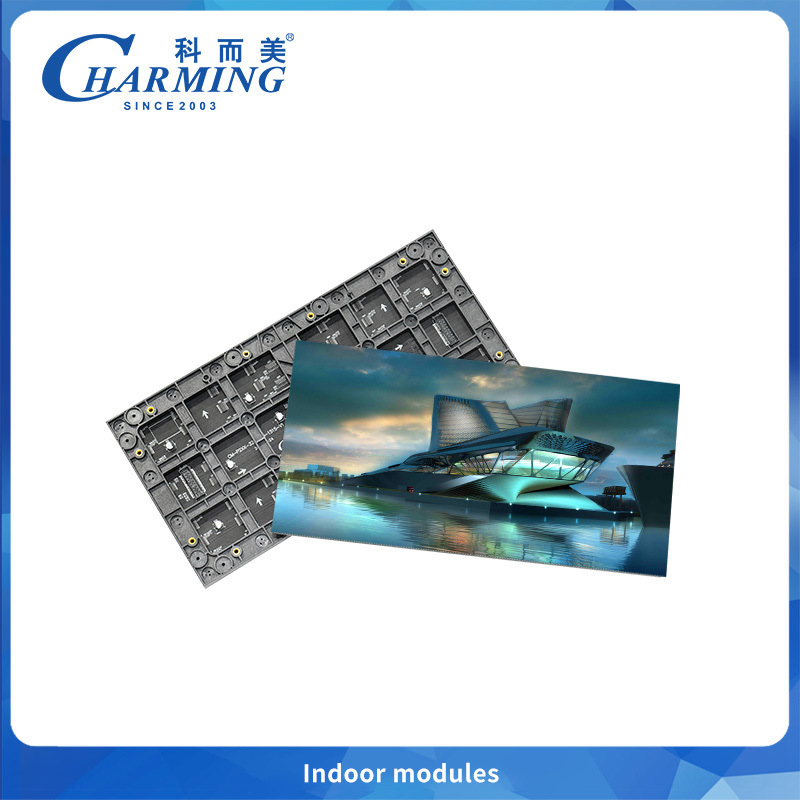

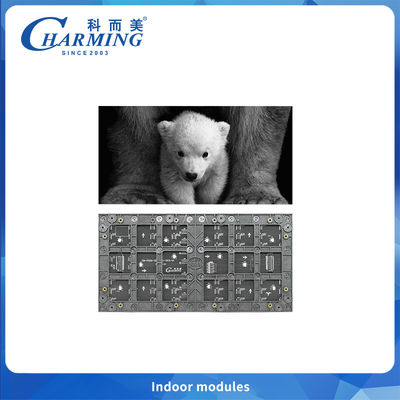

Indoor Full Color Led Screen Display Led Advertising Panel High Resolution Led Display Digital Panel
High Definition Small Pitch LED for Large Screen Advertising & Conference Applications
For over two decades, Charming Co., Ltd. has dedicated itself to innovation and excellence in the global entertainment lighting and LED display market.
We are proud of our legacy since 2003, when we pioneered the integration of LED displays into entertainment settings, initiating a trend that we still shape today. Our leadership has earned us a position as a preferred brand in China's entertainment lighting industry.
The company holds an extensive intellectual property portfolio of nearly 100 patents and maintains full compliance with international standards including ISO9001, CE, CCC, CB, ROHS, and SASO.
Our manufacturing capabilities, rooted in the "Charming Achieve Beauty" principle, feature a 10,000+ square meter facility with automated production lines. We have built a global presence, supplying quality solutions to more than 150 countries and regions for 22 years.
Technical Specifications
| Parameters | SP2 | SP2.22 | SP2.5 | SP3 | SP4 (256x128) | SP4 (256x256) |
|---|---|---|---|---|---|---|
| Type Number | SP2 | SP2.22 | SP2.5 | SP3 | SP4 | SP4 |
| Dimension (MM) | 320x160 | 320x160 | 320x160 | 192x192 | 256x128 | 256x256 |
| Pixel Pitch (MM) | 2 | 2.22 | 2.5 | 3 | 4 | 4 |
| LED Standard | SMD1515 | SMD2020 | SMD2020 | SMD2020 | SMD2020 | SMD2020 |
| Scan Mode | 1/40 Scan | 1/36 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan | 1/32 Scan |
| Pixel Density (Dot/m²) | 250000 | 202500 | 160000 | 111111 | 62500 | 62500 |
| Module Max.Power (W) | 22 | 20 | 24 | 10 | 5 | 10 |
| Best Viewing Distance (M) | ≥2.5 | ≥2.5 | ≥2.5 | ≥3 | ≥4 | ≥4 |
| Refresh Rate (Hz) | 7680 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 | 3840/1920 |
| Brightness (CD/m²) | 800 | ≥700 | ≥800 | ≥600 | ≥400 | ≥400 |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° | 120° |
| Protection Level | IP42 | IP42 | IP42 | IP42 | IP42 | IP42 |
| Grey Level | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit | 14-16 bit |
| Working Temperature | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ | -20 ~ 50℃ |
| Working Humidity | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH | 10% ~ 90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V | DC 5V |
Warranty & Support
Comprehensive 2-Year Protection
- 2-Year Full Warranty: Free replacement or repair for any defective displays, modules, or parts
- Lifetime Maintenance: Only material costs apply after warranty period
- Free Technical Training: Includes hands-on operation & maintenance training
- Complete Documentation: Operation manuals, software, test reports, CAD drawings
After-Sales Service Package
- On-site technical support (available upon request)
- Remote troubleshooting assistance
- Regular system maintenance recommendations
- Software/firmware updates
- Spare parts supply chain support
Frequently Asked Questions
Can I order samples for testing?
Yes, we welcome sample orders to test and check quality for both LED modules and complete screens.
What is the delivery time?
LED modules: 1-5 days. Complete screens (under 100m²): within 15 working days.
What warranty do you offer?
We provide a 2-year comprehensive warranty for all products.
How is the after-sales service?
Our professional team provides 24-hour online support with dedicated hotlines for complaints and feedback.
Can we customize display sizes?
Display sizes are determined by module and cabinet dimensions for optimal performance.
How to install the LED display?
We provide detailed CAD drawings or remote TeamViewer support for installation.
What shipping methods are available?
We recommend sea freight for cost efficiency, though air shipping is also available.
What payment methods do you accept?
We accept TT, Western Union, and recommend Ali Trade Assurance for secure transactions.
