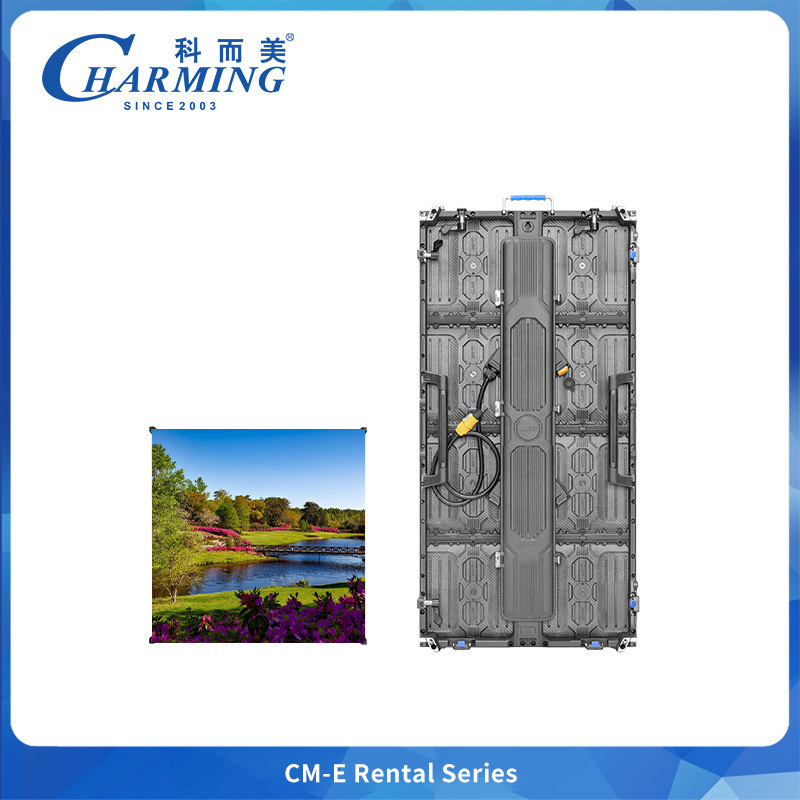

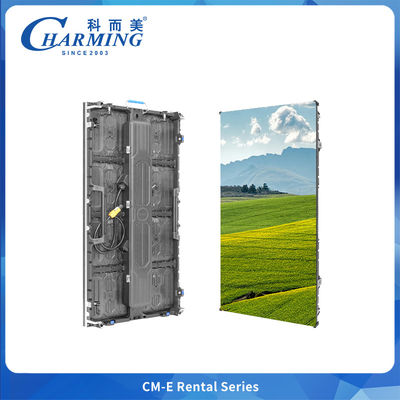

4m X 3m Digital Signage Turnkey Complete System LED Display 500mmx1000mm LED Panel Backdrop Outdoor LED Screen
تفاصيل المنتج:
| مكان المنشأ: | قوانغدو |
| اسم العلامة التجارية: | Charmingled |
| إصدار الشهادات: | CE, ROHS, LVD, EMC, CB, BIS, UL |
| رقم الموديل: | ص2.9 ص3.91 |
شروط الدفع والشحن:
| الحد الأدنى لكمية: | 2 أجهزة كمبيوتر |
|---|---|
| الأسعار: | قابل للتفاوض |
| تفاصيل التغليف: | قضية الكرتون ، حالة خشبية ، حالة طيران |
| وقت التسليم: | 30 يوم عمل بعد الدفع |
| شروط الدفع: | L/C ، T/T ، Western Union ، Moneygram |
| القدرة على العرض: | 1000 جهاز كمبيوتر في الأسبوع |
|
معلومات تفصيلية |
|||
| رقم النوع: | ص2.976 ص3.91 | سطوع: | ≥3500 قرص مضغوط/㎡ |
|---|---|---|---|
| معدل التحديث (هرتز): | 7680Hz | مواد مجلس الوزراء: | سبيكة الألومنيوم |
| طريقة الصيانة: | صيانة الظهر | عمر: | ≥50000 ساعة |
| إبراز: | 4m x 3m outdoor LED screen,500mmx1000mm LED panel display,turnkey digital signage system,500mmx1000mm LED panel display,turnkey digital signage system |
||
منتوج وصف
4m X 3m Digital Signage Turnkey Complete System LED Display 500mmx1000mm LED Panel Backdrop Outdoor LED Screen
Product Specification Table
| Parameter | P2.976 (500x500) | P2.976 (500x1000) | P3.91 (500x500) | P3.91 (500x1000) |
| Dimension (MM) | 500x500x79MM | 500x1000x79MM | 500x500x79MM | 500x1000x79MM |
| Max. Power (W) | 200W | 400W | 200W | 400W |
| Cabinet Weight (KG) | 6.4KG | 11KG | 6.4KG | 11KG |
| Brightness (CD/m²) | ≥3500 CD/m² | ≥3500 CD/m² | ≥3500 CD/m² | ≥3500 CD/m² |
| LED Standard | SMD1415 | SMD1415 | SMD1921 | SMD1921 |
| Viewing Angle | 140° | 140° | 140° | 140° |
| Protection Level | IP65 | IP65 | IP65 | IP65 |
| Refresh Rate (Hz) | 7680Hz | 7680Hz | 7680Hz | 7680Hz |
| Pixel Pitch (MM) | 2.976MM | 2.976MM | 3.91MM | 3.91MM |
| Scan Mode | 1/21 Scan | 1/21 Scan | 1/16 Scan | 1/16 Scan |
| Pixel Density (Dot/m²) | 112896 Dot/m² | 112896 Dot/m² | 65536 Dot/m² | 65536 Dot/m² |
| Cabinet Material | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy | Aluminum Alloy |
| Maintenance Method | Back Maintenance | Back Maintenance | Back Maintenance | Back Maintenance |
| Grey Level | 14-16 Bit | 14-16 Bit | 14-16 Bit | 14-16 Bit |
| Working Temperature | -20~60℃ | -20~60℃ | -20~60℃ | -20~60℃ |
| Working Humidity | 10%-90%RH | 10%-90%RH | 10%-90%RH | 10%-90%RH |
| Life Span | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours | ≥50000 Hours |
| Working Voltage | AC 110V/220V, ±15% | AC 110V/220V, ±15% | AC 110V/220V, ±15% | AC 110V/220V, ±15% |
Company Introduction
Chuangming Lighting is committed to providing value beyond the product itself. Our dedicated technical R&D team offers one-stop service from pre-sales, sales, and after-sales, including on-site installation guidance, product project design, and comprehensive project support.
✨ New Product Features
Multi-dimensional Professional Support: From product selection and solution design to on-site installation and commissioning, our expert team is on hand to assist you throughout the entire process.
Quick Response Mechanism: We have established a comprehensive and efficient customer service process to ensure your inquiries receive a prompt response and resolution.
Customized Solutions: We understand that every project is unique, and we are happy to provide customized products and solutions based on your specific needs.
Upgraded Design
Our service offerings are constantly evolving. We not only sell hardware, but also provide comprehensive solutions including software, content management, and system integration.
If you have an innovative but complex project, please contact us today. Let us bring your creative ideas to life with our professional technology and service.
